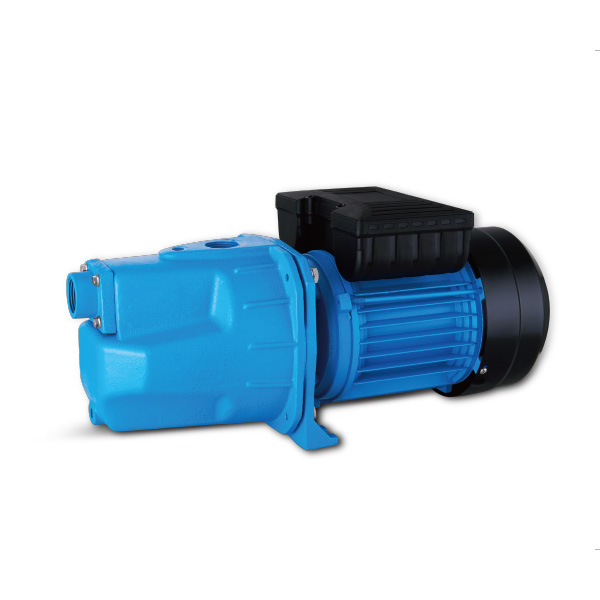

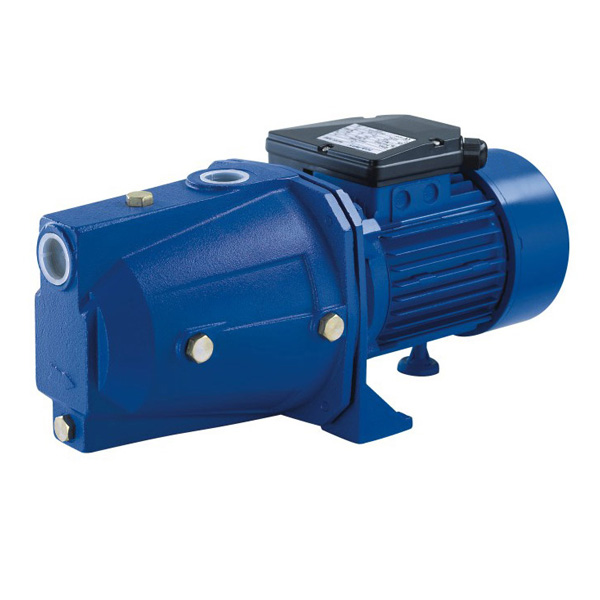

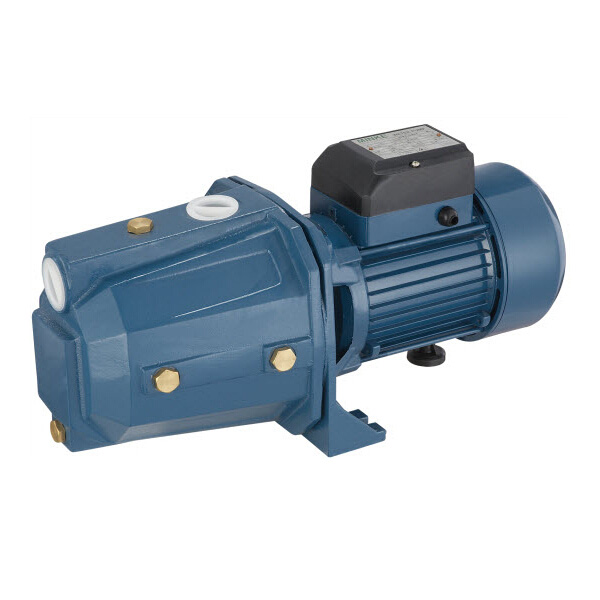

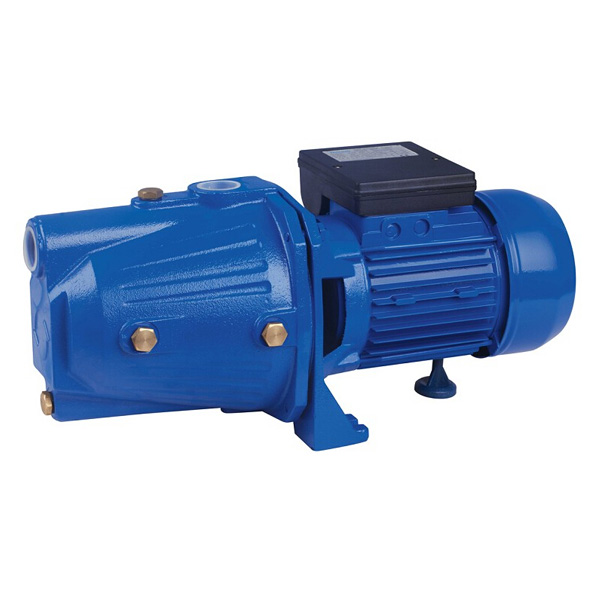

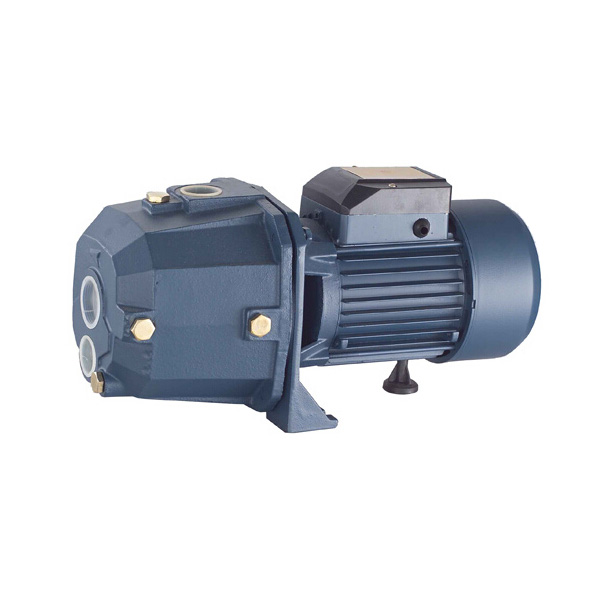

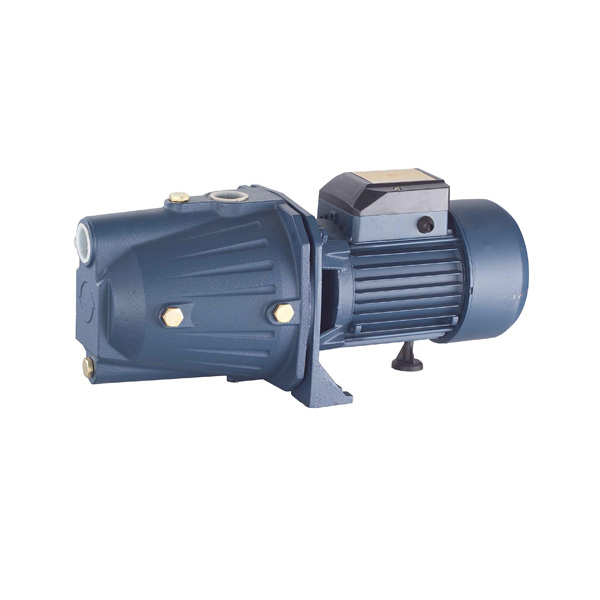

JET Series Self-Priming Pump is suitable to convey clean water and non-aggressive chemical fluid. Even with liquid mixed with gas, from well in continuous duty, they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch.

CONSTRUCT DATA
Pump body: Cast iron
Impeller: Brass
Motor house: Aluminum
Front cover: Cast iron
Mechanical seal: Stainless steel (graphite to ceramic or graphite to SIC)
Shaft: 45 # steel or stainless iron
Motor: with thermal overload protector in motor
Insulation class: B and F
Protection class: IP44

OPERATING CONDITIONS
Liquid temperature up to 60℃;
Ambient temperature up to 40℃

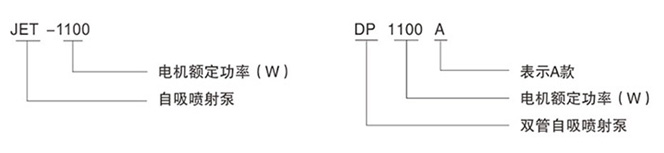

MODEL DESCRIPtTION

TECHNICAL DATAS

MODEL	OLD TYPE	Max Flow （m³/h）	Max Lift（m）	Suction（m）	Water Level（m）	Frequency（Hz）	Speed（r/min）	Power（kW）	Inlet&outlet Size（inch）	Voltage（v）
JET-750DP	DP750A	2.5	45	≤20	≤15	50	3000	0.75	1.25"×1"	220
JET-1100DP	DP1100A	2.5	50	≤30	≤18	50	3000	1.1	1.25"×1"	220
JET-1600DP	DP1600A	2.5	80	≤30	≤18	50	3000	1.6	1.25"×1"	220
JET-1100	-	3	45	≤9.8	≤9	50	3000	1.1	1"	220
JET-1500	-	3	50	≤9.8	≤9	50	3000	1.5	1"	220
JET-1800	-	3	55	≤9.8	≤9	50	3000	1.8	1"	220
JET-2000	-	3	55	≤9.8	≤9	50	3000	2	1"	220
