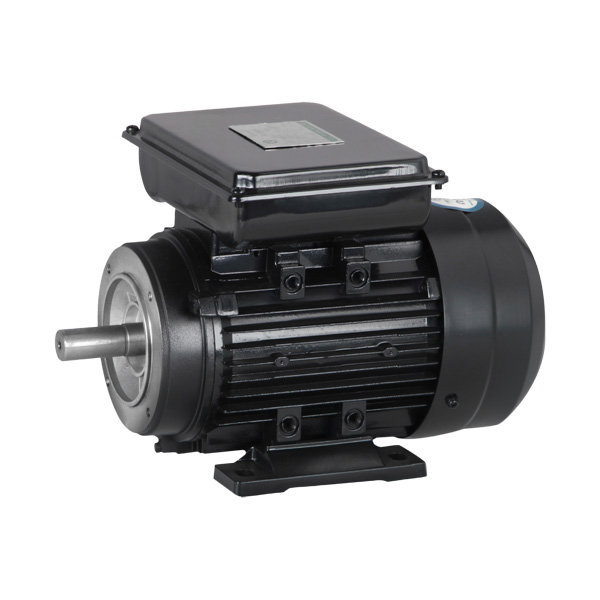

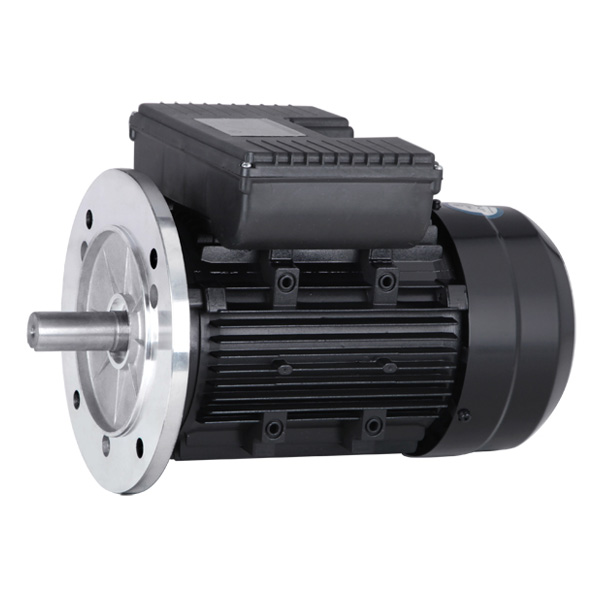

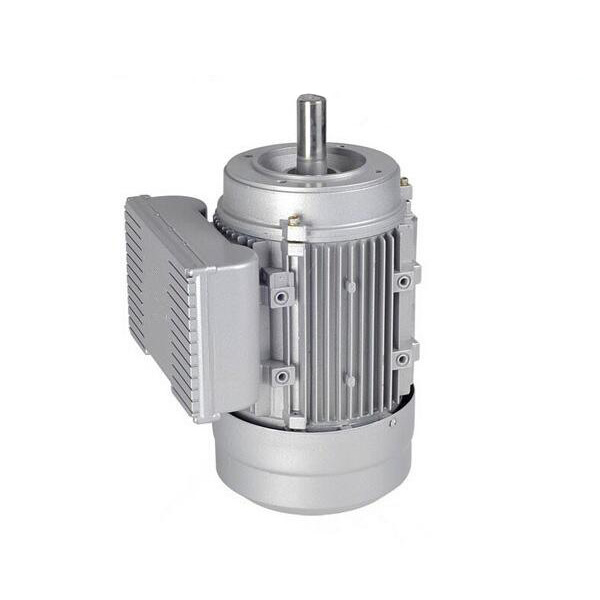

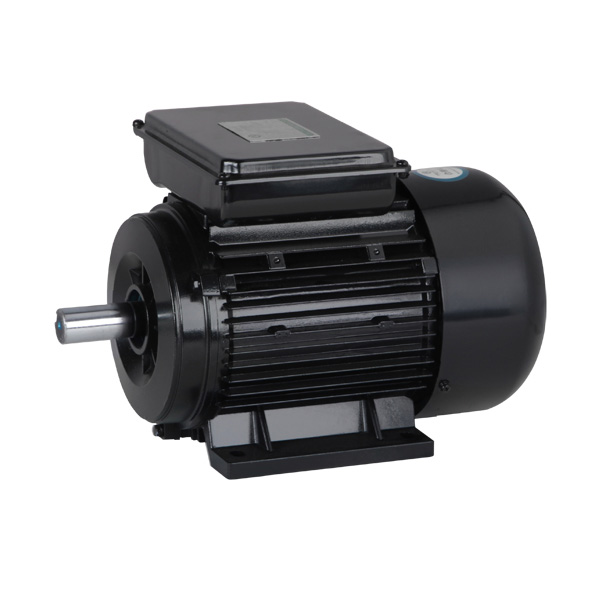

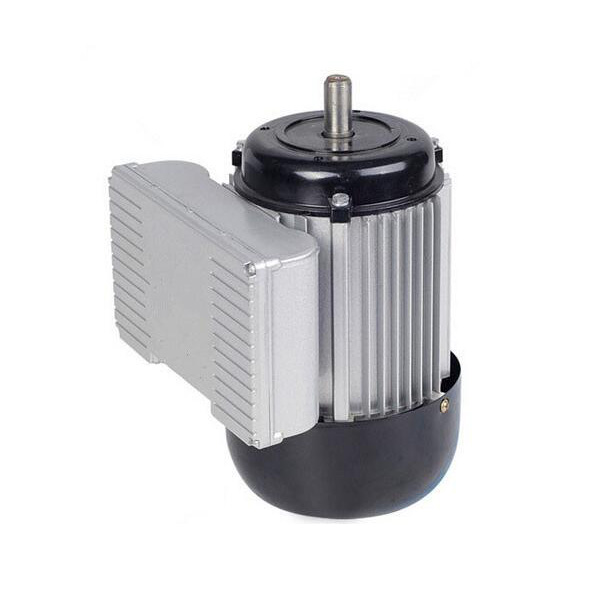

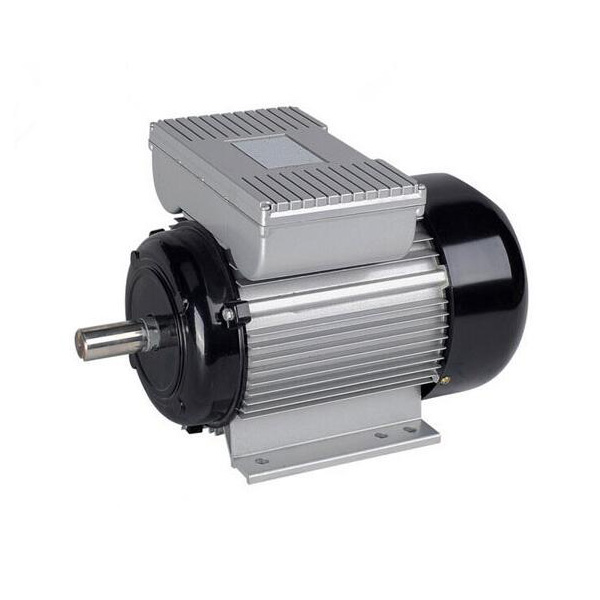

Name: ML SERIES DOUBLE-VALUE CAPACITOR SINGLE PHASE MOTOR
Type: ML
Product details
ML series motor is suitable for air compressor, water pump,medical equipment,refiners and other equipment requiring high torque.
This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintance.
Protection Class:IP44/IP54 Cooling Type:IC0141
Insulation Class:B or F Operation Type:S1
Rated Volt.:115/230,220V Rated Frequency:60Hz(50Hz)
Shell Material:Aluminum alloy
Performance data
|
Model
|
Power
kW
|
Current
A
|
Speed
r/min
|
Eff
%
|
Power
factor
|
Locked rotor torque/
Rated torque
|
Locked rotor
current
A
|
|
ML711-2
|
0.37
|
2.2
|
2800
|
67
|
0.92
|
1.8
|
16
|
|
ML712-2
|
0.55
|
3.9
|
2800
|
70
|
0.92
|
1.8
|
21
|
|
ML801-2
|
0.75
|
4.9
|
2800
|
72
|
0.95
|
1.8
|
29
|
|
ML802-2
|
1.1
|
7.0
|
2800
|
75
|
0.95
|
1.8
|
40
|
|
ML905-2
|
1.5
|
9.4
|
2800
|
76
|
0.95
|
1.7
|
55
|
|
ML90L-2
|
2.2
|
13.7
|
2800
|
77
|
0.95
|
1.7
|
80
|
|
ML100L1-2
|
3
|
18.2
|
2800
|
79
|
0.95
|
1.7
|
110
|
|
ML112M-2
|
4
|
26.6
|
2850
|
77
|
0.82
|
2.2
|
175
|
|
ML711-4
|
0.25
|
2.0
|
1400
|
62
|
0.92
|
1.8
|
12
|
|
ML712-4
|
0.37
|
2.8
|
1400
|
65
|
0.92
|
1.8
|
16
|
|
ML801-4
|
0.55
|
4.0
|
1400
|
68
|
0.92
|
1.8
|
21
|
|
ML802-4
|
0.75
|
5.1
|
1400
|
71
|
0.92
|
1.8
|
29
|
|
ML90-4
|
1.1
|
7.3
|
1400
|
73
|
0.95
|
1.7
|
40
|
|
ML90-4
|
1.5
|
9.7
|
1400
|
75
|
0.95
|
1.7
|
55
|
|
ML100L1-4
|
2.2
|
13.9
|
1400
|
76
|
0.95
|
1.7
|
80
|
|
ML112M-4
|
3
|
18.6
|
1400
|
77
|
0.95
|
1.7
|
110
|
|
ML90S-6
|
4
|
27.1
|
1400
|
78
|
0.77
|
2.2
|
175
|
|
ML90L-6
|
5.5
|
31.2
|
1400
|
78
|
0.79
|
2.2
|
200
|
|
ML100L1-2
|
1.5
|
11.4
|
2850
|
74
|
0.81
|
2.5
|
80
|
|
ML100L2-2
|
2.2
|
16.5
|
2850
|
75
|
0.81
|
2.2
|
120
|
|
ML100L1-4
|
1.1
|
9.6
|
1440
|
71
|
0.74
|
2.5
|
60
|
|
ML100L2-4
|
1.5
|
12.5
|
1440
|
73
|
0.75
|
2.5
|
80
|
|
ML100L1-6
|
0.55
|
6.9
|
950
|
60
|
0.60
|
2.5
|
35
|
|
ML100L2-6
|
0.75
|
9.0
|
950
|
61
|
0.62
|
2.2
|
45
|
|
ML112M-2
|
3
|
21.9
|
2850
|
76
|
0.82
|
2.2
|
150
|
|
ML112M-4
|
2.2
|
17.9
|
1400
|
74
|
0.76
|
2.2
|
120
|
|
ML112M-6
|
1.1
|
12.2
|
950
|
63
|
0.65
|
2.2
|
70
|
|
ML132S-2
|
3.7
|
26.6
|
2850
|
77
|
0.82
|
2.2
|
175
|
|
ML132S-4
|
3
|
23.6
|
1400
|
75
|
0.77
|
2.2
|
150
|
|
ML132M-4
|
3.7
|
28.4
|
1400
|
76
|
0.79
|
2.2
|
175
|
|
ML132S-6
|
1.5
|
14.8
|
950
|
68
|
0.68
|
2.0
|
90
|
|
ML132M-6
|
2.2
|
20.4
|
950
|
70
|
0.70
|
2.2
|
130
|

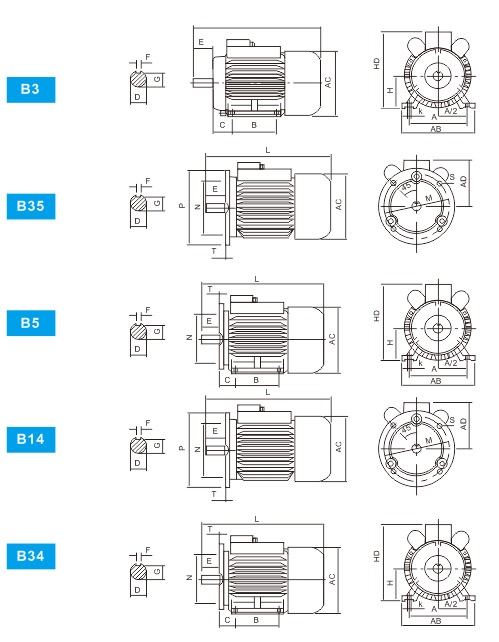

OVERALL INSTALLATION DIMENSION
|
Frame
|
Installation Dimension
|
Overall Dimension
|
|
IMB3
|
IMB14 IMB34
|
IMB5 IMB35
|
IMB3
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
AE
|
HD
|
L
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
85
|
70
|
105
|
0
|
M6
|
2.5
|
130
|
110
|
160
|
-
|
10
|
3.5
|
145
|
145
|
140
|
95
|
180
|
255
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
110
|
80
|
120
|
0
|
M6
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
160
|
165
|
150
|
110
|
200
|
295
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
120
|
220
|
370
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
120
|
220
|
400
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
215
|
180
|
250
|
0
|
15
|
4
|
205
|
200
|
180
|
130
|
260
|
430
|
|
112M
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
215
|
180
|
250
|
0
|
15
|
4
|
245
|
250
|
190
|
140
|
300
|
455
|
|
132S
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
155
|
350
|
525
|
|
132M
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
155
|
350
|
525
|
