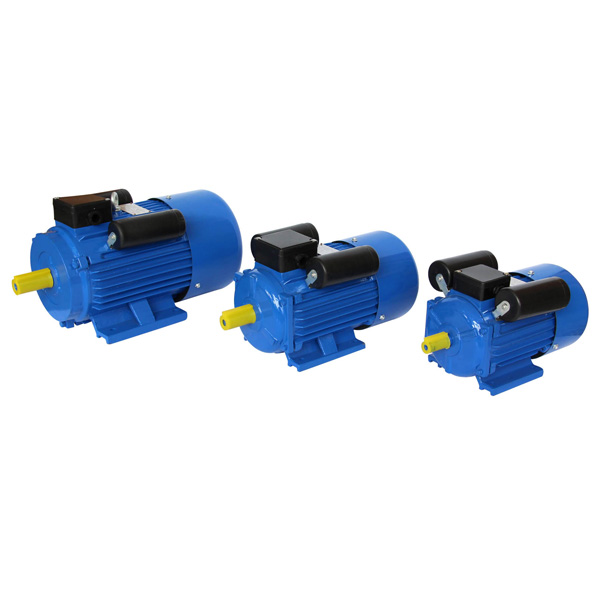

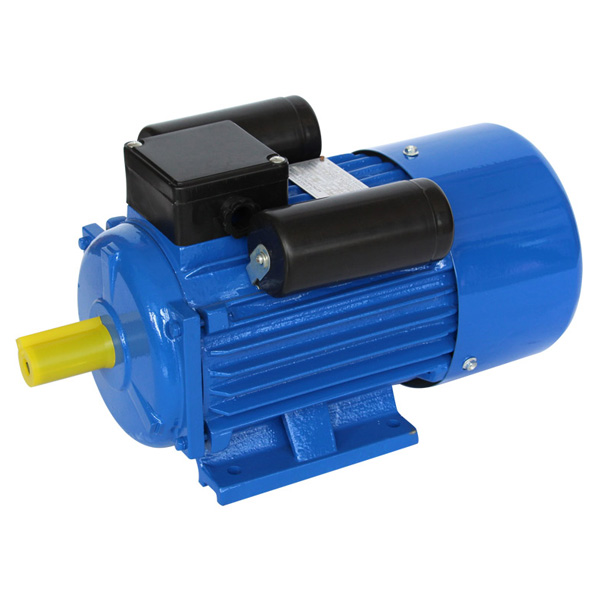

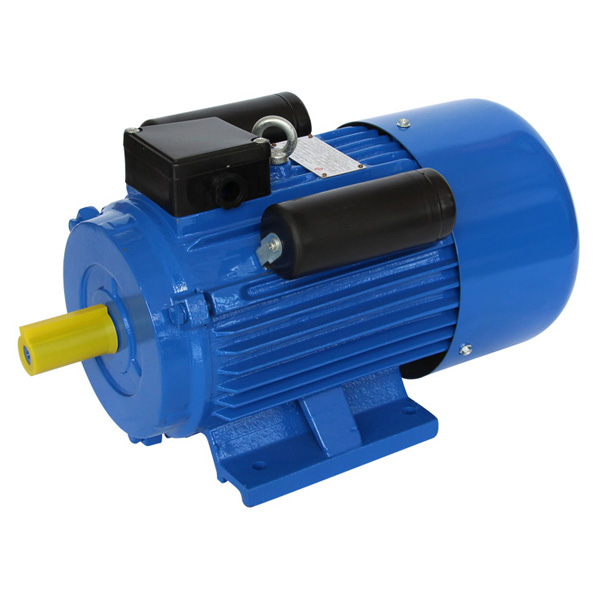

Frame：71~160        Power：0.12KW~7.5KW
Working set：S1    Insulation class：B
Motor Housing :Cast Iron
Applicable to: as air compressors, refrigerators, medical equipment and other mechanical power devices
Features: large starting torque, excellent performance chanting, energy saving, reliable structure, versatility. The basic series of motor rated power of 220V / 50Hz, according to the need to provide 110V / 220V, 110V, 240V, 60Hz and other motors

Performance data

model	power	Rated current	Rotating speed	effectiveness	Power factor	Stall torque Rated torque	Stall current
YC711-2	180	1.9	2800	60	0.72	3.0	12
YC712-2	250	2.4	2800	64	0.74	3.0	15
YC711-4	120	1.9	1400	50	0.58	3.0	9
YC712-4	180	2.5	1400	53	0.62	2.8	12
YC801-2	370	3.4	2800	65	0.77	2.8	21
YC802-2	550	4.7	2800	68	0.79	2.8	29
YC801-4	250	3.1	1400	58	0.63	2.8	15
YC802-4	370	4.2	1400	62	0.64	2.5	21
YC90S-2	750	6.1	2800	70	0.80	2.5	37
YC90L-2	1100	8.7	2800	72	0.80	2.5	60
YC90S-4	550	5.5	1400	66	0.69	2.5	29
YC90L-4	750	6.9	1400	68	0.73	2.5	37
YC90S-6	250	4.2	950	54	0.50	2.5	20
YC90L-6	370	5.3	950	58	0.55	2.5	25
YC100L1-2	1500	11.4	2850	74	0.81	2.5	80
YC100L2-2	2200	16.5	2850	75	0.81	2.2	120
YC100L1-4	1100	9.6	1440	71	0.74	2.5	60
YC100L2-4	1500	12.5	1440	73	0.75	2.5	80
YC100L1-6	550	6.9	950	60	0.60	2.5	35
YC100L2-6	750	9.0	950	61	0.62	2.2	45
YL112M-2	3000	21.9	2850	76	0.82	2.2	150
YL112M-4	2200	17.9	1400	74	0.76	2.2	120
YL112M-6	1100	12.2	950	63	0.65	2.2	70
YL132S-2	3700	26.6	2850	77	0.82	2.2	175
YL132S-4	3000	23.6	1400	75	0.77	2.2	150
YL132M-4	3700	28.4	1400	76	0.79	2.2	175
YL132S-6	1500	14.8	950	68	0.68	2.0	90
YL132M-6	2200	20.4	950	70	0.70	2.0	130

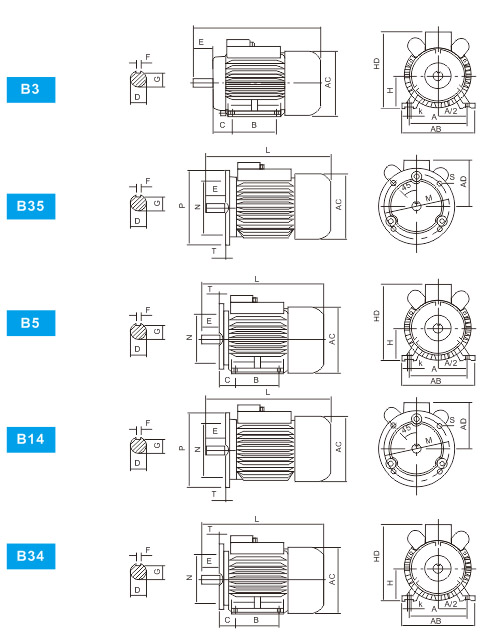

Overall Installation Dimensions

Frame	Installation Dimension																						Overall Dimension
	IMB3										IMB14   IMB34						IMB14        IMB35						IMB3
	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	M	N	P	R	S	T	AB	AC	AD	AE	HD	L
71	112	56	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	130	110	160	-	10	3.5	145	145	140	95	180	225
80	125	62.5	100	50	19	40	6	15.5	80	10	110	80	120	0	M6	3	165	130	200	0	12	3.5	160	165	150	110	200	295
90S	140	70	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	370
90L	140	70	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	400
100L	160	80	140	63	28	60	8	24	100	12	-	-	-	-	-	-	215	180	250	0	15	4	205	200	180	130	260	430
112M	190	95	140	70	28	60	8	24	112	12	-	-	-	-	-	-	215	180	250	0	15	4	245	250	190	140	300	455
132S	216	108	140	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525
132M	216	108	170	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	565
