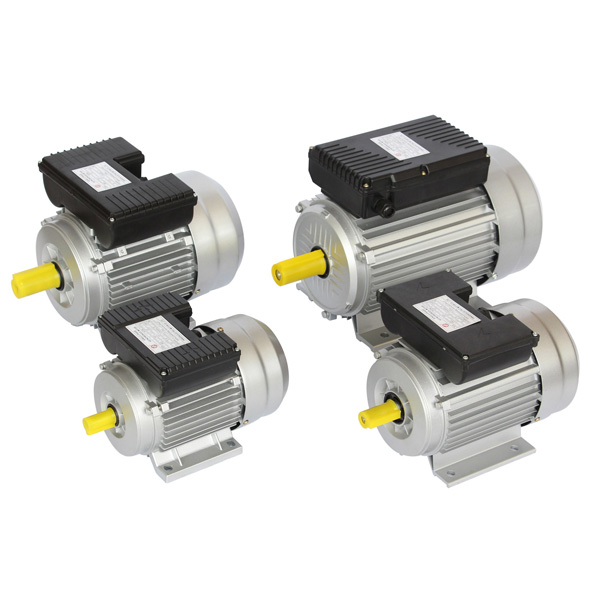

Name: MC SERIES CAPACITOR START SINGLE PHASE ELECTRIC MOTOR
Type: MC
Product details
Frame number：71~132 Power：120~3700W
Working set：S1 Insulation class：B
Housing :Aluminium Alloy
Applicable to: as air compressors, refrigerators, medical equipment and other mechanical power devices
Features: large starting torque, excellent performance chanting, energy saving, reliable structure, versatility. The basic series of motor rated power of 220V / 50Hz, according to the need to provide 110V / 220V, 110V, 240V, 60Hz and other motors
Performance Data
|
Model
|
Power
(W)
|
Rated current
（A）
|
Speed
|
Eff.
（%）
|
Power factor
|
Stall torque
Rated torque
|
Stall current
|
|
MC711-2
|
180
|
1.9
|
2800
|
60
|
0.72
|
3.0
|
12
|
|
MC712-2
|
250
|
2.4
|
2800
|
64
|
0.74
|
3.0
|
15
|
|
MC711-4
|
120
|
1.9
|
1400
|
50
|
0.58
|
3.0
|
9
|
|
MC712-4
|
180
|
2.5
|
1400
|
53
|
0.62
|
2.8
|
12
|
|
MC801-2
|
370
|
3.4
|
2800
|
65
|
0.77
|
2.8
|
21
|
|
MC802-2
|
550
|
4.7
|
2800
|
68
|
0.79
|
2.8
|
29
|
|
MC801-4
|
250
|
3.1
|
1400
|
58
|
0.63
|
2.8
|
15
|
|
MC802-4
|
370
|
4.2
|
1400
|
62
|
0.64
|
2.5
|
21
|
|
MC90S-2
|
750
|
6.1
|
2800
|
70
|
0.80
|
2.5
|
37
|
|
MC90L-2
|
1100
|
8.7
|
2800
|
72
|
0.80
|
2.5
|
60
|
|
MC90S-4
|
550
|
5.5
|
1400
|
66
|
0.69
|
2.5
|
29
|
|
MC90L-4
|
750
|
6.9
|
1400
|
68
|
0.73
|
2.5
|
37
|
|
MC90S-6
|
250
|
4.2
|
950
|
54
|
0.50
|
2.5
|
20
|
|
MC90L-6
|
370
|
5.3
|
950
|
58
|
0.55
|
2.5
|
25
|
|
MC100L1-2
|
1500
|
11.4
|
2850
|
74
|
0.81
|
2.5
|
80
|
|
MC100L2-2
|
2200
|
16.5
|
2850
|
75
|
0.81
|
2.2
|
120
|
|
MC100L1-4
|
1100
|
9.6
|
1440
|
71
|
0.74
|
2.5
|
60
|
|
MC100L2-4
|
1500
|
12.5
|
1440
|
73
|
0.75
|
2.5
|
80
|
|
MC100L1-6
|
550
|
6.9
|
950
|
60
|
0.60
|
2.5
|
35
|
|
MC100L2-6
|
750
|
9.0
|
950
|
61
|
0.62
|
2.2
|
45
|
|
MC112M-2
|
3000
|
21.9
|
2850
|
76
|
0.82
|
2.2
|
150
|
|
MC112M-4
|
2200
|
17.9
|
1400
|
74
|
0.76
|
2.2
|
120
|
|
MC112M-6
|
1100
|
12.2
|
950
|
63
|
0.65
|
2.2
|
70
|
|
MC132S-2
|
3700
|
26.6
|
2850
|
77
|
0.82
|
2.2
|
175
|
|
MC132S-4
|
3000
|
23.6
|
1400
|
75
|
0.77
|
2.2
|
150
|
|
MC132M-4
|
3700
|
28.4
|
1400
|
76
|
0.79
|
2.2
|
175
|
|
MC132S-6
|
1500
|
14.8
|
950
|
68
|
0.68
|
2.0
|
90
|
|
MC132M-6
|
2200
|
20.4
|
950
|
70
|
0.70
|
2.0
|
130
|

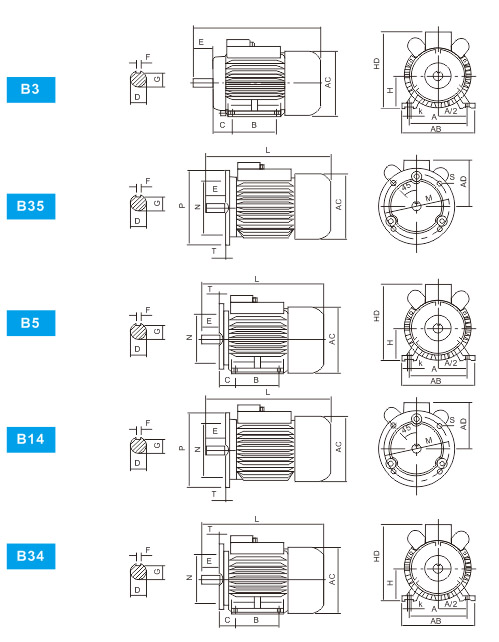

OVERALL INSTALLATION DIMENSION
|
Frame
|
Installation dimensions
|
Overall Dimensions
|
|
IMB3
|
IMB14 IMB34
|
IMB14 IMB35
|
IMB3
|
|
A
|
A/2
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
AE
|
HD
|
L
|
|
71
|
112
|
56
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
85
|
70
|
105
|
0
|
M6
|
2.5
|
130
|
110
|
160
|
-
|
10
|
3.5
|
145
|
145
|
140
|
95
|
180
|
225
|
|
80
|
125
|
62.5
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
110
|
80
|
120
|
0
|
M6
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
160
|
165
|
150
|
110
|
200
|
295
|
|
90S
|
140
|
70
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
120
|
220
|
370
|
|
90L
|
140
|
70
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
120
|
220
|
400
|
|
100L
|
160
|
80
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
215
|
180
|
250
|
0
|
15
|
4
|
205
|
200
|
180
|
130
|
260
|
430
|
|
112M
|
190
|
95
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
215
|
180
|
250
|
0
|
15
|
4
|
245
|
250
|
190
|
140
|
300
|
455
|
|
132S
|
216
|
108
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
155
|
350
|
525
|
|
132M
|
216
|
108
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
-
|
-
|
-
|
-
|
-
|
-
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
155
|
350
|
565
|
