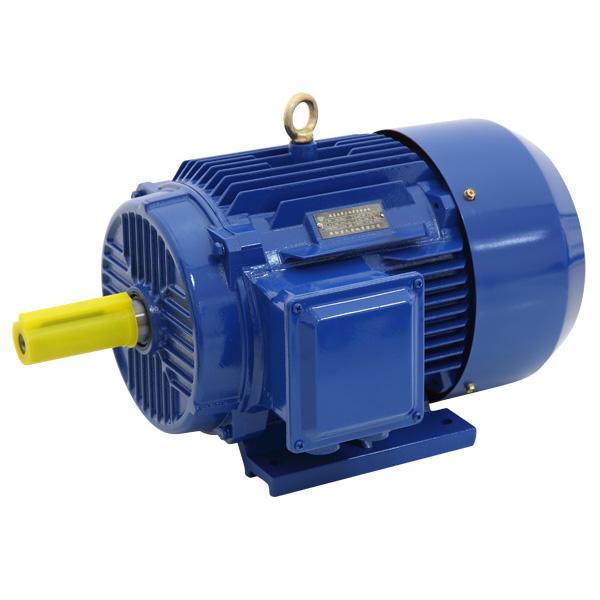

Name: IE2 SERIES THREE PHASE INDUCTION MOTOR
Type: IE2
Product details
Frame Size: 63 ~ 355 Power: 0.12 ~ 315KW
Working set: S1 Insulation class: F
Applicable to: all places and no special requirements of machinery, such as metal cutting machine tools, pumps, fans, transport machinery, mixers, agricultural machinery, food machinery.
Features: beautiful appearance, low noise, vibration, insulation class for the F-class, enclosure protection class IP54 or IP55, comprehensive performance and Siemens 1LA56 series quite.
Conditions of use: no more than 1000M above sea level. Ambient temperature changes with the seasons, but the maximum does not exceed +40 ℃, the minimum not less than -15 ℃.
PERFORMANCE DATA
|
MODEL
|
POWER
KW
|
Rate Current
A
|
Speed
|
Eff.
%
|
Power
Factor
|
Locked rotor
Torque/
Rated torque
|
Locked rotor current/
Rated current
|
Breakdown torque
Rated torque
|
|
Synchronous speed 3000r/min
|
|
IE2-63M1-2
|
0.18
|
0.53
|
2720
|
65.0
|
0.80
|
2.2
|
5.5
|
2.2
|
|
IE2-63M2-2
|
0.25
|
0.69
|
2720
|
68.0
|
0.81
|
2.2
|
5.5
|
2.2
|
|
IE2-71M1-2
|
0.37
|
0.99
|
2740
|
70.0
|
0.81
|
2.2
|
6.1
|
2.2
|
|
IE2-71M2-2
|
0.55
|
1.4
|
2740
|
73.0
|
0.82
|
2.2
|
6.1
|
2.3
|
|
IE2-80M1-2
|
0.75
|
1.8
|
2840
|
75.0
|
0.83
|
2.2
|
6.1
|
2.3
|
|
IE2-80M2-2
|
1.1
|
2.6
|
2840
|
77.0
|
0.84
|
2.2
|
7.0
|
2.3
|
|
IE2-90S-2
|
1.5
|
3.4
|
2845
|
79.0
|
0.84
|
2.2
|
7.0
|
2.3
|
|
IE2-90L-2
|
2.2
|
4.9
|
2845
|
81.0
|
0.85
|
2.2
|
7.0
|
2.3
|
|
IE2-100L-2
|
3
|
6.3
|
2860
|
83.0
|
0.87
|
2.2
|
7.5
|
2.3
|
|
IE2-112M-2
|
4
|
8.1
|
2880
|
85.0
|
0.88
|
2.2
|
7.5
|
2.3
|
|
IE2-132S1-2
|
5.5
|
11.0
|
2900
|
86.0
|
0.88
|
2.2
|
7.5
|
2.3
|
|
IE2-132S2-2
|
7.5
|
14.9
|
2900
|
87.0
|
0.88
|
2.2
|
7.5
|
2.3
|
|
IE2-160M1-2
|
11
|
21.3
|
2930
|
88.0
|
0.89
|
2.2
|
7.5
|
2.3
|
|
IE2-160M2-2
|
15
|
28.8
|
2930
|
89.0
|
0.89
|
2.2
|
7.5
|
2.3
|
|
IE2-160L-2
|
18.5
|
34.7
|
2930
|
90.0
|
0.90
|
2.2
|
7.5
|
2.3
|
|
IE2-180M-2
|
22
|
41.0
|
2940
|
90.0
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-200L1-2
|
30
|
55.5
|
2950
|
91.2
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-200L2-2
|
37
|
67.9
|
2950
|
92.0
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-225M-2
|
45
|
82.3
|
2960
|
92.3
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-250M-2
|
55
|
100
|
2965
|
92.5
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-280S-2
|
75
|
135
|
2970
|
93.0
|
0.90
|
2.0
|
7.5
|
2.3
|
|
IE2-280M-2
|
90
|
160
|
2970
|
93.8
|
0.91
|
2.0
|
7.5
|
2.3
|
|
IE2-315S-2
|
110
|
195
|
2975
|
94.0
|
0.91
|
1.8
|
7.1
|
2.2
|
|
IE2-315M-2
|
132
|
233
|
2975
|
94.5
|
0.91
|
1.8
|
7.1
|
2.2
|
|
IE2-315L1-2
|
160
|
279
|
2975
|
94.6
|
0.92
|
1.8
|
7.1
|
2.2
|
|
IE2-315L2-2
|
200
|
348
|
2975
|
94.8
|
0.92
|
1.8
|
7.1
|
2.2
|
|
IE2-335M-2
|
250
|
433
|
2980
|
95.3
|
0.92
|
1.6
|
7.1
|
2.2
|
|
IE2-355L-2
|
315
|
544
|
2980
|
95.6
|
0.92
|
1.6
|
7.1
|
2.2
|
|
Synchronous speed 1500r/min
|
|
IE2-63M1-4
|
0.12
|
0.44
|
1310
|
57.0
|
0.72
|
2.1
|
4.4
|
2.2
|
|
IE2-63M2-4
|
0.18
|
0.62
|
1310
|
60.0
|
0.73
|
2.1
|
4.4
|
2.2
|
|
IE2-71M1-2
|
0.25
|
0.79
|
1330
|
65.0
|
0.74
|
2.1
|
5.2
|
2.2
|
|
IE2-71M2-4
|
0.37
|
1.12
|
1330
|
67.0
|
0.75
|
2.1
|
5.2
|
2.2
|
|
IE2-80M1-4
|
0.55
|
1.6
|
1390
|
71.0
|
0.75
|
2.4
|
5.2
|
2.3
|
|
IE2-80M2-4
|
0.75
|
2.0
|
1390
|
73.0
|
0.76
|
2.3
|
6.0
|
2.3
|
|
IE2-90S-4
|
1.1
|
2.9
|
1390
|
75.0
|
0.77
|
2.3
|
6.0
|
2.3
|
|
IE2-90L-4
|
1.5
|
3.7
|
1390
|
78.0
|
0.79
|
2.3
|
6.0
|
2.3
|
|
IE2-100L1-4
|
2.2
|
5.2
|
1410
|
80.0
|
0.81
|
2.3
|
7.0
|
2.3
|
|
IE2-100L2-4
|
3
|
6.8
|
1410
|
82.0
|
0.82
|
2.3
|
7.0
|
2.3
|
|
IE2-112M-4
|
4
|
8.8
|
1440
|
84.0
|
0.82
|
2.3
|
7.0
|
2.3
|
|
IE2-132S-4
|
5.5
|
11.8
|
1440
|
85.0
|
0.83
|
2.3
|
7.0
|
2.3
|
|
IE2-132M-4
|
7.5
|
15.6
|
1440
|
87.0
|
0.84
|
2.3
|
7.0
|
2.3
|
|
IE2-160M-4
|
11
|
22.3
|
1460
|
88.0
|
0.84
|
2.2
|
7.0
|
2.3
|
|
IE2-160L-4
|
15
|
30.1
|
1460
|
89.0
|
0.85
|
2.2
|
7.5
|
2.3
|
|
IE2-180M-4
|
18.5
|
36.1
|
1470
|
90.5
|
0.86
|
2.2
|
7.5
|
2.3
|
|
IE2-180L-4
|
22
|
42.7
|
1470
|
91.0
|
0.86
|
2.2
|
7.5
|
2.3
|
|
IE2-200L-4
|
30
|
57.6
|
1470
|
92.0
|
0.86
|
2.2
|
7.2
|
2.3
|
|
IE2-225S-4
|
37
|
69.9
|
1475
|
92.5
|
0.87
|
2.2
|
7.2
|
2.3
|
|
IE2-225M-4
|
45
|
84.7
|
1475
|
92.8
|
0.87
|
2.2
|
7.2
|
2.3
|
|
IE2-250M-4
|
55
|
103
|
1480
|
93.0
|
0.87
|
2.2
|
7.2
|
2.3
|
|
IE2-280S-4
|
75
|
140
|
1480
|
93.8
|
0.87
|
2.2
|
7.2
|
2.3
|
|
IE2-280M-4
|
90
|
167
|
1480
|
94.2
|
0.87
|
2.2
|
7.2
|
2.3
|
|
IE2-315S-4
|
110
|
201
|
1480
|
94.5
|
0.88
|
2.1
|
6.9
|
2.2
|
|
IE2-315M-4
|
132
|
240
|
1480
|
94.8
|
0.88
|
2.1
|
6.9
|
2.2
|
|
IE2-315L1-4
|
160
|
288
|
1480
|
94.9
|
0.89
|
2.1
|
6.9
|
2.2
|
|
IE2-315L2-4
|
200
|
359
|
1480
|
95.0
|
0.89
|
2.1
|
6.9
|
2.2
|
|
IE2-355M-4
|
250
|
443
|
1490
|
95.3
|
0.90
|
2.1
|
6.9
|
2.2
|
|
IE2-355L-4
|
315
|
556
|
1490
|
95.6
|
0.90
|
2.1
|
6.9
|
2.2
|
|
Synchronous speed 1000r/min
|
|
IE2-71M1-6
|
0.18
|
0.74
|
850
|
56.0
|
0.66
|
1.9
|
4.0
|
2.0
|
|
IE2-71M2-6
|
0.25
|
0.95
|
850
|
59.0
|
0.68
|
1.9
|
4.0
|
2.0
|
|
IE2-80M1-6
|
0.37
|
1.3
|
885
|
62.0
|
0.70
|
1.9
|
4.7
|
2.0
|
|
IE2-80M2-6
|
0.55
|
1.8
|
885
|
65.0
|
0.72
|
1.9
|
4.7
|
2.1
|
|
IE2-90S-6
|
0.75
|
2.3
|
910
|
69.0
|
0.72
|
2.0
|
5.5
|
2.1
|
|
IE2-90L-6
|
1.1
|
3.2
|
910
|
72.0
|
0.73
|
2.0
|
5.5
|
2.1
|
|
IE2-100L-6
|
1.5
|
3.9
|
920
|
76.0
|
0.75
|
2.0
|
5.5
|
2.1
|
|
IE2-112M-6
|
2.2
|
5.6
|
935
|
79.0
|
0.76
|
2.0
|
6.5
|
2.1
|
|
IE2-132S-6
|
3
|
7.4
|
960
|
81.0
|
0.76
|
2.1
|
6.5
|
2.1
|
|
IE2-132M1-6
|
4
|
9.8
|
960
|
82.0
|
0.76
|
2.1
|
6.5
|
2.1
|
|
IE2-132M2-6
|
5.5
|
12.9
|
965
|
84.0
|
0.77
|
2.1
|
6.5
|
2.1
|
|
IE2-160M-6
|
7.5
|
17.2
|
970
|
86.0
|
0.77
|
2.0
|
6.5
|
2.1
|
|
IE2-160L-6
|
11
|
24.2
|
970
|
87.5
|
0.78
|
2.0
|
6.5
|
2.1
|
|
IE2-180M-6
|
15
|
31.6
|
970
|
89.0
|
0.81
|
2.0
|
7.0
|
2.1
|
|
IE2-200L1-6
|
18.5
|
38.6
|
980
|
90.0
|
0.81
|
2.1
|
7.0
|
2.1
|
|
IE2-200L2-6
|
22
|
44.7
|
980
|
90.0
|
0.83
|
2.1
|
7.0
|
2.1
|
|
IE2-225M-6
|
30
|
59.3
|
980
|
91.5
|
0.84
|
2.0
|
7.0
|
2.1
|
|
IE2-250M-6
|
37
|
71.1
|
980
|
92.0
|
0.86
|
2.1
|
7.0
|
2.1
|
|
IE2-280S-6
|
45
|
85.9
|
980
|
92.5
|
0.86
|
2.1
|
7.0
|
2.0
|
|
IE2-280M-6
|
55
|
105
|
980
|
92.8
|
0.86
|
2.1
|
7.0
|
2.0
|
|
IE2-315S-6
|
75
|
142
|
985
|
93.5
|
0.86
|
2.0
|
7.0
|
2.0
|
|
IE2-315M-6
|
90
|
170
|
985
|
92.8
|
0.86
|
2.0
|
7.0
|
2.0
|
|
IE2-315L1-6
|
110
|
207
|
985
|
94.0
|
0.86
|
2.0
|
6.7
|
2.0
|
|
IE2-315L2-6
|
132
|
245
|
985
|
94.2
|
0.87
|
2.0
|
6.7
|
2.0
|
|
IE2-355M1-6
|
160
|
292
|
990
|
94.5
|
0.88
|
1.9
|
6.7
|
2.0
|
|
IE2-355M2-6
|
200
|
365
|
990
|
94.7
|
0.88
|
1.9
|
6.7
|
2.0
|
|
IE2-355L-6
|
250
|
455
|
990
|
94.9
|
0.88
|
1.9
|
6.7
|
2.0
|
|
Synchronous speed 750r/min
|
|
IE2-80M1-8
|
0.18
|
0.88
|
645
|
51.0
|
0.61
|
1.8
|
3.3
|
1.9
|
|
IE2-80M2-8
|
0.25
|
1.15
|
645
|
54.0
|
0.61
|
1.8
|
3.3
|
1.9
|
|
IE2-90S-8
|
0.37
|
1.49
|
670
|
62.0
|
0.61
|
1.8
|
4.0
|
1.9
|
|
IE2-90L-8
|
0.55
|
2.17
|
670
|
63.0
|
0.61
|
1.8
|
4.0
|
2.0
|
|
IE2-100L1-8
|
0.75
|
2.4
|
680
|
71.0
|
0.67
|
1.8
|
4.0
|
2.0
|
|
IE2-100L2-8
|
1.1
|
3.4
|
680
|
73.0
|
0.69
|
1.8
|
5.0
|
2.0
|
|
IE2-112M-8
|
1.5
|
4.4
|
690
|
75.0
|
0.69
|
1.8
|
5.0
|
2.0
|
|
IE2-132S-8
|
2.2
|
6
|
705
|
78.0
|
0.71
|
1.8
|
6.0
|
2.0
|
|
IE2-132M-8
|
3
|
7.9
|
705
|
79.0
|
0.73
|
1.8
|
6.0
|
2.0
|
|
IE2-160M1-8
|
4
|
10.3
|
720
|
81.0
|
0.73
|
1.9
|
6.0
|
2.0
|
|
IE2-160M2-8
|
5.5
|
13.6
|
720
|
83.0
|
0.74
|
2.0
|
6.0
|
2.0
|
|
IE2-160L-8
|
7.5
|
17.8
|
720
|
85.5
|
0.75
|
2.0
|
6.0
|
2.0
|
|
IE2-180L-8
|
11
|
25.1
|
730
|
87.5
|
0.76
|
2.0
|
6.6
|
2.0
|
|
IE2-200L-8
|
15
|
34.1
|
730
|
88.0
|
0.76
|
2.0
|
6.6
|
2.0
|
|
IE2-225S-8
|
18.5
|
41.4
|
730
|
90.0
|
0.76
|
1.9
|
6.6
|
2.0
|
|
IE2-225M-8
|
22
|
47.4
|
730
|
90.5
|
0.78
|
1.9
|
6.6
|
2.0
|
|
IE2-250M-8
|
30
|
63.4
|
730
|
91.0
|
0.79
|
1.9
|
6.6
|
2.0
|
|
IE2-280S-8
|
37
|
77.8
|
740
|
91.5
|
0.79
|
1.9
|
6.6
|
2.0
|
|
IE2-280M-8
|
45
|
94.1
|
735
|
92.0
|
0.79
|
1.9
|
6.6
|
2.0
|
|
IE2-315S-8
|
55
|
111
|
735
|
92.8
|
0.81
|
1.8
|
6.6
|
2.0
|
|
IE2-315M-8
|
75
|
151
|
735
|
93.0
|
0.81
|
1.8
|
6.6
|
2.0
|
|
IE2-315L1-8
|
90
|
178
|
735
|
93.8
|
0.82
|
1.8
|
6.6
|
2.0
|
|
IE2-315L2-8
|
110
|
217
|
735
|
94.0
|
0.82
|
1.8
|
6.4
|
2.0
|
|
IE2-355M1-8
|
132
|
261
|
740
|
93.7
|
0.82
|
1.8
|
6.4
|
2.0
|
|
IE2-355M2-8
|
160
|
315
|
740
|
94.2
|
0.82
|
1.8
|
6.4
|
2.0
|
|
IE2-355L-8
|
200
|
387
|
740
|
94.5
|
0.83
|
1.8
|
6.4
|
2.0
|
|
Synchronous speed 600r/min
|
|
IE2-315S-10
|
45
|
99.6
|
590
|
91.5
|
0.75
|
1.5
|
6.2
|
2.0
|
|
IE2-315M-10
|
55
|
121
|
590
|
92.0
|
0.75
|
1.5
|
6.2
|
2.0
|
|
IE2-315L1-10
|
75
|
162
|
590
|
92.5
|
0.76
|
1.5
|
6.2
|
2.0
|
|
IE2-315L2-10
|
90
|
191
|
590
|
93.0
|
0.77
|
1.5
|
6.2
|
2.0
|
|
IE2-355M1-10
|
110
|
230
|
590
|
93.2
|
0.78
|
1.3
|
6.0
|
2.0
|
|
IE2-355M2-10
|
132
|
275
|
590
|
93.5
|
0.78
|
1.3
|
6.0
|
2.0
|
|
IE2-355L-10
|
160
|
333
|
590
|
93.5
|
0.78
|
1.3
|
6.0
|
2.0
|
|
Frame
|
Pole
|
Installation Dimension
|
Overall Dimension
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
M
|
N
|
P
|
R
|
S
|
T
|
K
|
Flang hole
|
AB
|
AC
|
AD
|
HD
|
HF
|
L
|
|
63M
|
2.4
|
110
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
75
|
60
|
90
|
0
|
M5
|
2.5
|
7
|
4
|
135
|
130
|
70
|
180
|
130
|
230
|
|
71M
|
2.4.6
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
85
|
70
|
105
|
0
|
M6
|
2.5
|
7
|
4
|
150
|
145
|
80
|
195
|
145
|
255
|
|
80M
|
2.4.6.8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
100
|
80
|
120
|
0
|
M6
|
3
|
10
|
4
|
165
|
175
|
145
|
214
|
185
|
295
|
|
90S
|
2.4.6.8
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
115
|
95
|
140
|
0
|
M8
|
3
|
10
|
4
|
180
|
195
|
155
|
250
|
195
|
320
|
|
90L
|
2.4.6.8
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
115
|
95
|
140
|
0
|
M8
|
3
|
10
|
4
|
180
|
195
|
155
|
250
|
195
|
345
|
|
100L
|
2.4.6.8
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
12
|
4
|
205
|
215
|
180
|
270
|
245
|
385
|
|
112M
|
2.4.6.8
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
12
|
4
|
230
|
240
|
190
|
300
|
265
|
400
|
|
Frame
|
Pole
|
Installation Dimension
|
Overall Dimension
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
M
|
N
|
P
|
R
|
S
|
T
|
K
|
AB
|
AC
|
AD
|
HD
|
HF
|
L
|
|
63M
|
2.4
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
115
|
95
|
140
|
0
|
10
|
3
|
7
|
135
|
130
|
70
|
180
|
130
|
230
|
|
71M
|
2.4.6
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
130
|
110
|
160
|
0
|
10
|
3.5
|
7
|
150
|
145
|
80
|
195
|
145
|
255
|
|
80M
|
2.4.6.8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
165
|
130
|
200
|
0
|
12
|
3.5
|
10
|
165
|
175
|
145
|
220
|
185
|
295
|
|
90S
|
2.4.6.8
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
165
|
130
|
200
|
0
|
12
|
3.5
|
10
|
180
|
195
|
155
|
250
|
195
|
320
|
|
90L
|
2.4.6.8
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
165
|
130
|
200
|
0
|
12
|
3.5
|
10
|
180
|
195
|
155
|
250
|
195
|
345
|
|
100L
|
2.4.6.8
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
215
|
180
|
250
|
0
|
15
|
4
|
12
|
205
|
215
|
180
|
270
|
245
|
385
|
|
112M
|
2.4.6.8
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
215
|
180
|
250
|
0
|
15
|
4
|
12
|
230
|
240
|
190
|
300
|
265
|
400
|
|
132S
|
2.4.6.8
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
265
|
230
|
300
|
0
|
15
|
4
|
12
|
270
|
275
|
210
|
345
|
315
|
470
|
|
132M
|
2.4.6.8
|
216
|
170
|
89
|
38
|
80
|
10
|
33
|
132
|
265
|
230
|
300
|
0
|
15
|
4
|
12
|
240
|
275
|
210
|
345
|
315
|
510
|
|
160M
|
2.4.6.8
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
300
|
250
|
350
|
0
|
19
|
5
|
15
|
320
|
330
|
255
|
420
|
385
|
615
|
|
160L
|
2.4.6.8
|
254
|
254
|
108
|
42
|
110
|
12
|
37
|
160
|
300
|
250
|
350
|
0
|
19
|
5
|
15
|
320
|
330
|
255
|
420
|
385
|
670
|
|
180M
|
2.4.6.8
|
279
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
300
|
250
|
350
|
0
|
19
|
5
|
15
|
355
|
380
|
280
|
455
|
430
|
700
|
|
180L
|
2.4.6.8
|
279
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
300
|
250
|
350
|
0
|
19
|
5
|
15
|
355
|
380
|
280
|
455
|
430
|
740
|
|
200L
|
2.4.6.8
|
318
|
305
|
133
|
55
|
110
|
16
|
49
|
200
|
350
|
300
|
400
|
0
|
19
|
5
|
19
|
395
|
420
|
305
|
505
|
480
|
770
|
|
225S
|
4.8
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
225
|
400
|
350
|
450
|
0
|
19
|
5
|
19
|
435
|
470
|
335
|
560
|
535
|
815
|
|
225M
|
2
|
356
|
311
|
149
|
55
|
110
|
16
|
49
|
225
|
400
|
350
|
450
|
0
|
19
|
5
|
19
|
435
|
470
|
335
|
560
|
535
|
820
|
|
4.6.8
|
60
|
140
|
18
|
53
|
845
|
|
250M
|
2
|
406
|
349
|
168
|
60
|
140
|
18
|
53
|
250
|
500
|
450
|
550
|
0
|
19
|
5
|
24
|
490
|
510
|
370
|
615
|
595
|
910
|
|
4.6.8
|
65
|
140
|
18
|
58
|
|
280S
|
2
|
457
|
368
|
190
|
65
|
140
|
18
|
58
|
280
|
500
|
450
|
550
|
0
|
19
|
5
|
24
|
550
|
580
|
410
|
680
|
650
|
985
|
|
4.6.8
|
75
|
140
|
20
|
67.5
|
|
280M
|
2
|
457
|
419
|
190
|
65
|
140
|
18
|
58
|
280
|
500
|
450
|
550
|
0
|
24
|
5
|
19
|
550
|
580
|
410
|
680
|
650
|
1035
|
|
4.6.8.10
|
75
|
140
|
20
|
67.5
|
|
315S
|
2
|
508
|
406
|
216
|
65
|
140
|
18
|
58
|
315
|
600
|
550
|
660
|
0
|
24
|
6
|
28
|
635
|
645
|
530
|
845
|
-
|
1160
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1270
|
|
315M
|
2
|
508
|
457
|
216
|
65
|
140
|
18
|
58
|
315
|
600
|
550
|
660
|
0
|
24
|
6
|
28
|
635
|
645
|
530
|
845
|
-
|
1190
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1300
|
|
315L
|
2
|
508
|
508
|
216
|
65
|
140
|
18
|
58
|
315
|
600
|
550
|
660
|
0
|
24
|
6
|
28
|
635
|
645
|
530
|
845
|
-
|
1190
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1300
|
|
355M
|
2
|
610
|
560
|
254
|
75
|
140
|
20
|
67.5
|
355
|
740
|
680
|
800
|
0
|
24
|
6
|
28
|
730
|
710
|
655
|
1010
|
-
|
1500
|
|
4.6.8.10
|
95
|
170
|
25
|
86
|
1530
|
|
355L
|
2
|
610
|
630
|
254
|
75
|
140
|
20
|
67.5
|
355
|
740
|
680
|
800
|
0
|
24
|
6
|
25
|
730
|
710
|
655
|
1010
|
-
|
1500
|
|
4.6.8.10
|
95
|
170
|
25
|
86
|
1530
|
|
Frame
|
Pole
|
Installation Dimension
|
|
D
|
E
|
F
|
G
|
M
|
N
|
P
|
R
|
S
|
T
|
Flange
Hole
|
AC
|
AD
|
HF
|
L
|
|
180M
|
2.4.6.8
|
48
|
110
|
14
|
42.5
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
380
|
280
|
500
|
760
|
|
180L
|
2.4.6.8
|
48
|
110
|
14
|
42.5
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
380
|
280
|
500
|
800
|
|
200L
|
2.4.6.8
|
55
|
110
|
16
|
49
|
350
|
300
|
400
|
0
|
19
|
5
|
4
|
420
|
305
|
550
|
840
|
|
225S
|
4.8
|
60
|
140
|
18
|
53
|
400
|
350
|
450
|
0
|
19
|
5
|
8
|
470
|
335
|
610
|
905
|
|
225M
|
2
|
55
|
110
|
16
|
49
|
400
|
350
|
450
|
0
|
19
|
5
|
8
|
470
|
335
|
610
|
910
|
|
4.6.8
|
60
|
140
|
18
|
53
|
|
250M
|
2
|
60
|
140
|
18
|
53
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
510
|
370
|
650
|
935
|
|
4.6.8
|
65
|
140
|
18
|
58
|
1015
|
|
280S
|
2
|
65
|
140
|
18
|
58
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
580
|
410
|
720
|
1110
|
|
4.6.8
|
75
|
140
|
20
|
67.5
|
|
280M
|
2
|
65
|
140
|
18
|
58
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
580
|
410
|
720
|
1150
|
|
4.6.8
|
75
|
140
|
20
|
67.5
|
|
315S
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
645
|
530
|
900
|
1280
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1510
|
|
315M
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
645
|
530
|
900
|
1310
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1430
|
|
315L
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
645
|
530
|
900
|
1310
|
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1430
|
|
355M
|
2
|
75
|
140
|
20
|
67.5
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
710
|
655
|
1010
|
1640
|
|
4.6.8.10
|
95
|
170
|
25
|
86
|
1670
|
|
355L
|
2
|
75
|
140
|
20
|
67.5
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
710
|
655
|
1010
|
1640
|
|
4.6.8.10
|
95
|
170
|
25
|
86
|
1670
|
Installation structure type
Common installation structure type, and the applicable frame size is shown in the table below
|
Frame
|
Installation Dimension
|
Overall Dimension
|
|
B3
|
B5
|
B35
|
V1
|
V3
|
V5
|
V6
|
B6
|
B7
|
B8
|
V15
|
V36
|
B14
|
B34
|
V18
|
|
63~112
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
|
132~160
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
－
|
－
|
－
|
|
|
180~280
|
√
|
√
|
√
|
√
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
-
|
|
315~355
|
√
|
－
|
√
|
√
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
－
|
-
|
Note: "√" indicates the type of structure that can be manufactured
