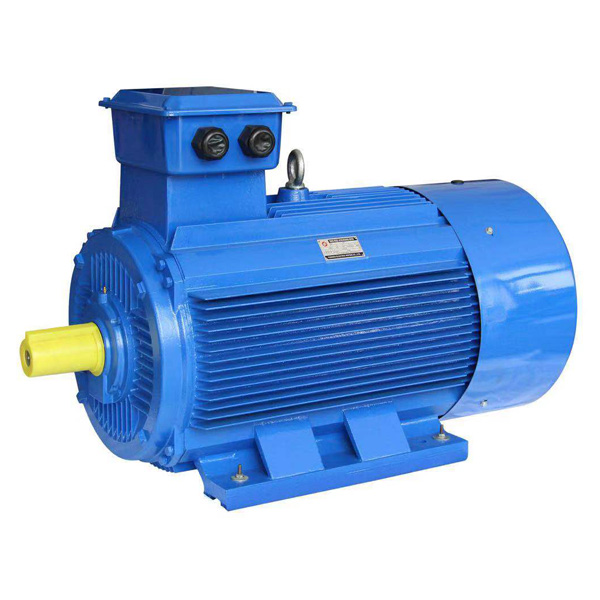

Name: ANP Series Gost-standard Three Phase Asynchronous Motor
Type: ANP
Product details
Frame Size：56~355 Power：0.18~355KW
Work Set：S1 Cooling Type: IC411
Insulation：B Class Protection :IP55
ANP series three-phase asynchronous motor is specially designed for Russia market, whose terminal box locates on the top of motor. The motor has a very compact structure and attractive appearance, the sizes and mounting dimensions are all in conformity with Gost standard.
Features: Good-looking appearance ,high efficiency, energy saving, low noise and little vibration., high starting torque, reasonable price, easy construction etc.
Working system: Continuous S1
Applications: General purpose including cutting, machine, pumps, fans, conveyors, Agricultural Machinery and food machinery
OPERATING CONDITIONS:
Ambient temperature: -15℃≤ 0≤ 40℃
Altitude: ≤1000 M
Rated voltage: 380V, 220/380V, 380/660V
Rated frequency: 50Hz
Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
TECHNICAL DATAS
|
Model
|
Rated Power
|
Rated Power
|
Efficiency
|
Power
|
In,A
|
Is/In
|
Tmax/Tn
|
Ts/Tn
|
Weight
kg
|
|
KW
|
HP
|
RPM
|
%
|
factor
|
(U=380B)
|
|
2P=2,n=3000
|
|
ANP 56 А2
|
0.18
|
0.25
|
2720
|
65
|
0.8
|
0.53
|
5.3
|
2.2
|
2.2
|
4.9
|
|
ANP 56 B2
|
0.25
|
0.37
|
2720
|
68
|
0.81
|
0.69
|
5.3
|
2.2
|
2.2
|
5.2
|
|
ANP 63 А2
|
0.37
|
0.5
|
2740
|
70
|
0.81
|
0.99
|
5.8
|
2.2
|
2.2
|
6
|
|
ANP 63 В2
|
0.55
|
0.75
|
2740
|
73
|
0.82
|
1.4
|
5.8
|
2.3
|
2.2
|
6.5
|
|
ANP 71 А2
|
0.75
|
1
|
2840
|
75.1
|
0.83
|
1.83
|
6.1
|
2.3
|
2.2
|
11
|
|
ANP 71 В2
|
1.1
|
1.5
|
2840
|
77
|
0.84
|
2.58
|
6.7
|
2.3
|
2.2
|
12.5
|
|
ANP 80 А2
|
1.5
|
2
|
2840
|
78
|
0.84
|
3.48
|
6.7
|
2.3
|
2.2
|
15.5
|
|
ANP 80 В2
|
2.2
|
3
|
2840
|
81
|
0.85
|
4.85
|
7
|
2.3
|
2.2
|
19.5
|
|
ANP 90 L2
|
3
|
4
|
2830
|
83
|
0.86
|
6.39
|
7
|
2.3
|
2.2
|
23
|
|
ANP 100 S2
|
4
|
5.5
|
2880
|
85
|
0.88
|
8.12
|
7.5
|
2.3
|
2.2
|
32
|
|
ANP 100 L2
|
5.5
|
7.5
|
2880
|
86
|
0.88
|
11
|
7.5
|
2.3
|
2.2
|
36
|
|
ANP 112 М2
|
7.5
|
10
|
2885
|
88
|
0.87
|
14.9
|
7
|
2.3
|
2.2
|
50
|
|
ANP 132 М2
|
11
|
15
|
2920
|
88
|
0.86
|
22.1
|
7.5
|
2.3
|
2.2
|
89
|
|
ANP 160 S2
|
15
|
20
|
2930
|
89.5
|
0.89
|
28.6
|
7.5
|
2.3
|
2.2
|
120
|
|
ANP 160 M2
|
18.5
|
25
|
2935
|
90
|
0.9
|
34.7
|
7.5
|
2.3
|
2.2
|
140
|
|
ANP 180 S2
|
22
|
30
|
2945
|
90.5
|
0.9
|
41
|
7.5
|
2.3
|
2
|
170
|
|
ANP 180 M2
|
30
|
40
|
2945
|
90.5
|
0.9
|
56
|
7.5
|
2.3
|
2
|
203
|
|
ANP 200 M2
|
37
|
50
|
2950
|
92.5
|
0.88
|
69.1
|
7
|
2.3
|
2
|
248
|
|
ANP 200 L2
|
45
|
60
|
2955
|
92.5
|
0.88
|
84
|
7
|
2.3
|
2
|
255
|
|
ANP 225 M2
|
55
|
75
|
2960
|
93
|
0.9
|
99.8
|
7.5
|
2.3
|
2.2
|
328
|
|
ANP 250 S2
|
75
|
100
|
2970
|
93
|
0.89
|
138
|
7
|
2.4
|
2
|
480
|
|
ANP 250 M2
|
90
|
125
|
2970
|
93
|
0.9
|
163
|
7
|
2.4
|
2
|
525
|
|
ANP 280S2
|
110
|
150
|
2980
|
93.5
|
0.89
|
201
|
7
|
2.2
|
2
|
610
|
|
ANP 280M2
|
132
|
180
|
2980
|
94
|
0.89
|
240
|
7
|
2.2
|
1.8
|
695
|
|
ANP 315S2
|
160
|
220
|
2975
|
94.8
|
0.92
|
279
|
7.1
|
2.2
|
1.8
|
1055
|
|
ANP 315M2
|
200
|
270
|
2975
|
95
|
0.92
|
348
|
7.1
|
2.2
|
1.8
|
1110
|
|
ANP 355S2
|
250
|
340
|
2980
|
95.4
|
0.92
|
433
|
7.1
|
2.2
|
1.8
|
1900
|
|
ANP 355M2
|
315
|
430
|
2980
|
95.5
|
0.92
|
545
|
7.1
|
2.2
|
1.8
|
2300
|
|
2P=4,n=1500
|
|
ANP 56 А4
|
0.12
|
0.17
|
1310
|
57
|
0.72
|
0.44
|
4.6
|
2.2
|
2.1
|
4.9
|
|
ANP 56 B4
|
0.18
|
0.25
|
1310
|
60
|
0.73
|
0.62
|
5
|
2.2
|
2.1
|
5.2
|
|
ANP 63 А4
|
0.25
|
0.37
|
1330
|
65
|
0.74
|
0.79
|
5.2
|
2.2
|
2.1
|
6.1
|
|
ANP63 В4
|
0.37
|
0.5
|
1380
|
67
|
0.75
|
1.12
|
5.2
|
2.2
|
2.1
|
6.4
|
|
ANP71 А4
|
0.55
|
0.75
|
1390
|
71.1
|
0.75
|
1.57
|
5.7
|
2.3
|
2.2
|
11
|
|
ANP71 В4
|
0.75
|
1
|
1390
|
62
|
0.76
|
2.42
|
5.7
|
2.3
|
2.2
|
13
|
|
ANP80 A4
|
1.1
|
1.5
|
1390
|
76
|
0.77
|
2.86
|
6.2
|
2.3
|
2.3
|
16
|
|
ANP80 B4
|
1.5
|
2.2
|
1390
|
78
|
0.79
|
3.7
|
6.5
|
2.3
|
2.3
|
19.5
|
|
ANP90 L4
|
2.2
|
3
|
1410
|
80
|
0.82
|
5.1
|
7
|
2.3
|
2.3
|
25
|
|
ANP100 S4
|
3
|
4
|
1430
|
82
|
0.82
|
6.78
|
7
|
2.3
|
2.2
|
35
|
|
ANP100 L4
|
4
|
5.5
|
1430
|
84
|
0.82
|
8.82
|
7
|
2.3
|
2.2
|
37
|
|
ANP112 М4
|
5.5
|
7.5
|
1435
|
86
|
0.82
|
11.8
|
7
|
2.3
|
2.3
|
55
|
|
ANP132 S4
|
7.5
|
10
|
1455
|
87
|
0.83
|
15.8
|
7
|
2.3
|
2.3
|
79
|
|
ANP132 М4
|
11
|
15
|
1455
|
88
|
0.83
|
22.9
|
7
|
2.3
|
2.2
|
90
|
|
ANP160 S4
|
15
|
20
|
1460
|
89.5
|
0.85
|
30
|
7.5
|
2.3
|
2.2
|
125
|
|
ANP160 M4
|
18.5
|
25
|
1460
|
90
|
0.86
|
36.3
|
7.5
|
2.3
|
2.2
|
142
|
|
ANP180 S4
|
22
|
30
|
1465
|
91
|
0.85
|
43.2
|
7.2
|
2.3
|
2.2
|
177
|
|
ANP180 M4
|
30
|
40
|
1465
|
91
|
0.85
|
58.9
|
7.5
|
2.3
|
2.2
|
190
|
|
ANP200 M4
|
37
|
50
|
1475
|
92.5
|
0.86
|
70.7
|
7
|
2.3
|
2.2
|
247
|
|
ANP200 L4
|
45
|
60
|
1475
|
92.5
|
0.87
|
85
|
7
|
2.3
|
2.2
|
260
|
|
ANP225 M4
|
55
|
75
|
1475
|
93
|
0.86
|
104
|
7.2
|
2.3
|
2.2
|
330
|
|
ANP250 S4
|
75
|
100
|
1470
|
93.5
|
0.85
|
143
|
7.2
|
2.3
|
2.2
|
485
|
|
ANP250 M4
|
90
|
125
|
1470
|
94
|
0.87
|
167
|
7.2
|
2.3
|
2.2
|
530
|
|
ANP 280S4
|
110
|
150
|
1480
|
94
|
0.88
|
202
|
7
|
2.1
|
2
|
615
|
|
ANP 280M4
|
132
|
180
|
1480
|
94
|
0.88
|
242
|
7
|
2.1
|
2
|
700
|
|
ANP 315S4
|
160
|
220
|
1480
|
95
|
0.89
|
288
|
6.9
|
2.2
|
2.1
|
1055
|
|
ANP 315М4
|
200
|
270
|
1480
|
95
|
0.89
|
359
|
6.9
|
2.2
|
2.1
|
1128
|
|
ANP 355M4
|
250
|
340
|
1480
|
95.3
|
0.9
|
443
|
6.9
|
2.2
|
2.1
|
1700
|
|
ANP 355S4
|
315
|
430
|
1480
|
95.3
|
0.9
|
558
|
6.9
|
2.2
|
2.1
|
1900
|
|
2P=6,n=1000
|
|
ANP 63 А6
|
0.18
|
0.25
|
850
|
56
|
0.66
|
0.74
|
4.2
|
2
|
1.9
|
6
|
|
ANP 63 В6
|
0.25
|
0.37
|
850
|
59
|
0.68
|
0.95
|
4
|
2
|
1.9
|
6.3
|
|
ANP 71 А6
|
0.37
|
0.5
|
885
|
65.1
|
0.7
|
1.23
|
4.7
|
2
|
1.9
|
12.2
|
|
ANP 71 В6
|
0.55
|
0.75
|
885
|
51
|
0.72
|
2.28
|
4.7
|
2
|
1.9
|
12.5
|
|
ANP 80 MА6
|
0.75
|
1
|
910
|
69
|
0.72
|
2.29
|
5.5
|
2.1
|
2
|
16
|
|
ANP 80 MВ6
|
1.1
|
1.5
|
910
|
72
|
0.73
|
3.18
|
5.5
|
2.1
|
2
|
20
|
|
ANP 90 L6
|
1.5
|
2
|
910
|
77
|
0.75
|
3.95
|
6.5
|
2.1
|
2
|
25
|
|
ANP 100 L6
|
2.2
|
3
|
940
|
80
|
0.76
|
5.5
|
6.5
|
2.1
|
2
|
38
|
|
ANP 112 МA6
|
3
|
4
|
955
|
83
|
0.77
|
7.13
|
6
|
2.3
|
2.1
|
51
|
|
ANP 112 МB6
|
4
|
5.5
|
960
|
83
|
0.76
|
9.63
|
6
|
2.3
|
2.1
|
53
|
|
ANP 132 S6
|
5.5
|
7.5
|
960
|
84
|
0.76
|
13.1
|
6.5
|
2.1
|
2.1
|
80
|
|
ANP 132 М6
|
7.5
|
10
|
960
|
84.5
|
0.78
|
17.3
|
6.5
|
2
|
2
|
91
|
|
ANP 160 S6
|
11
|
15
|
965
|
87.5
|
0.78
|
24.5
|
7
|
2.1
|
2
|
126
|
|
ANP 160 M6
|
15
|
20
|
965
|
89
|
0.81
|
31.6
|
7
|
2.1
|
2
|
148
|
|
ANP 180 M6
|
18.5
|
25
|
980
|
89
|
0.81
|
39
|
7
|
2.1
|
2.1
|
200
|
|
ANP 200 M6
|
22
|
30
|
980
|
90
|
0.83
|
44.7
|
6
|
2.3
|
2
|
240
|
|
ANP 200 L6
|
30
|
40
|
980
|
90
|
0.82
|
61.8
|
7
|
2.3
|
2.2
|
250
|
|
ANP 225 M6
|
37
|
50
|
980
|
91
|
0.84
|
73.5
|
7
|
2
|
2.1
|
330
|
|
ANP 250 S6
|
45
|
60
|
985
|
92.5
|
0.82
|
90.1
|
7
|
2.1
|
2
|
485
|
|
ANP 250 M6
|
55
|
75
|
985
|
92.5
|
0.82
|
110
|
7
|
2.1
|
2
|
530
|
|
ANP 280S6
|
75
|
100
|
985
|
92.5
|
0.82
|
150
|
7
|
2
|
2
|
610
|
|
ANP 280M6
|
90
|
125
|
985
|
93
|
0.83
|
177
|
7
|
2
|
2
|
700
|
|
ANP 315S6
|
110
|
150
|
985
|
94.1
|
0.86
|
207
|
6.7
|
2
|
2
|
1045
|
|
ANP 315M6
|
132
|
180
|
985
|
94.3
|
0.87
|
244
|
6.7
|
2
|
2
|
1100
|
|
ANP 355S6
|
160
|
220
|
990
|
94.6
|
0.88
|
292
|
6.7
|
2
|
1.9
|
1550
|
|
ANP 355M6
|
200
|
270
|
990
|
94.6
|
0.88
|
365
|
6.7
|
2
|
1.9
|
1600
|
|
ANP 355L6
|
250
|
340
|
990
|
94.6
|
0.88
|
456
|
6.7
|
2
|
1.9
|
1700
|
|
2P=8,n=750
|
|
ANP 71 В8
|
0.25
|
0.37
|
645
|
54
|
0.61
|
1.15
|
4
|
1.9
|
1.8
|
10.5
|
|
ANP 80MА8
|
0.37
|
0.5
|
670
|
62
|
0.61
|
1.49
|
4.3
|
1.9
|
1.8
|
17
|
|
ANP 80MВ8
|
0.55
|
0.75
|
670
|
63
|
0.61
|
2.17
|
4
|
2
|
1.8
|
19
|
|
ANP 90 LA8
|
0.75
|
1
|
685
|
72
|
0.68
|
2.33
|
4
|
2
|
1.8
|
25
|
|
ANP 90 LB8
|
1.1
|
1.5
|
690
|
72
|
0.68
|
3.41
|
4
|
2
|
1.8
|
28
|
|
ANP 100 L8
|
1.5
|
2
|
700
|
75
|
0.7
|
4.34
|
5
|
2
|
1.8
|
39
|
|
ANP 112 МA8
|
2.2
|
3
|
700
|
78
|
0.71
|
6.04
|
4
|
2
|
1.8
|
47
|
|
ANP 112 МB8
|
3
|
4
|
700
|
79
|
0.71
|
8.13
|
4
|
2
|
1.8
|
53
|
|
ANP 132 S8
|
4
|
5.5
|
720
|
82
|
0.7
|
10.6
|
6
|
2
|
2
|
81
|
|
ANP 132 М8
|
5.5
|
7.5
|
720
|
83
|
0.72
|
14
|
6
|
2
|
2
|
92
|
|
ANP 160 S8
|
7.5
|
10
|
720
|
85.5
|
0.75
|
17.8
|
6
|
2
|
2
|
138
|
|
ANP 160 M8
|
11
|
15
|
720
|
86.5
|
0.76
|
25.4
|
5.5
|
2
|
2
|
150
|
|
ANP 180 M8
|
15
|
20
|
725
|
87
|
0.76
|
34.5
|
6.5
|
2
|
2
|
205
|
|
ANP 200 M8
|
18.5
|
25
|
730
|
89
|
0.76
|
41.6
|
6.6
|
2
|
1.8
|
248
|
|
ANP 200 L8
|
22
|
30
|
730
|
89
|
0.76
|
49.4
|
6.6
|
2.3
|
2
|
262
|
|
ANP 225 M8
|
30
|
40
|
730
|
91
|
0.77
|
65
|
6.6
|
2
|
1.9
|
335
|
|
ANP 250 S8
|
37
|
50
|
735
|
91
|
0.75
|
82.4
|
6.5
|
2
|
1.8
|
490
|
|
ANP 250 M8
|
45
|
60
|
735
|
92
|
0.75
|
99.1
|
7
|
2
|
1.9
|
535
|
|
ANP 280S8
|
55
|
75
|
740
|
92
|
0.75
|
121
|
6.6
|
2
|
1.8
|
615
|
|
ANP 280M8
|
75
|
100
|
740
|
92.5
|
0.8
|
154
|
6.6
|
2
|
1.8
|
695
|
|
ANP 315S8
|
90
|
125
|
735
|
93.8
|
0.82
|
178
|
6.6
|
2
|
1.8
|
1055
|
|
ANP 315M8
|
110
|
150
|
735
|
94
|
0.82
|
217
|
6.4
|
2
|
1.8
|
1118
|
|
ANP 355S8
|
132
|
180
|
740
|
93.7
|
0.82
|
261
|
6.4
|
2
|
1.8
|
2000
|
|
ANP 355M8
|
160
|
220
|
740
|
94.2
|
0.82
|
315
|
6.4
|
2
|
1.8
|
2150
|
|
ANP 355MB8
|
200
|
270
|
740
|
94.5
|
0.83
|
387
|
6.4
|
2
|
1.8
|
2250
|
|
2P=10,n=600
|
|
ANP 315S10
|
55
|
75
|
590
|
92
|
0.75
|
121
|
6.2
|
2
|
1.5
|
928
|
|
ANP 315M10
|
75
|
100
|
590
|
92.5
|
0.76
|
162
|
6.2
|
2
|
1.5
|
1080
|
|
ANP 355S10
|
90
|
125
|
590
|
93
|
0.77
|
191
|
6.2
|
2
|
1.5
|
1200
|
|
ANP 355MA10
|
110
|
150
|
590
|
93.2
|
0.78
|
230
|
6
|
2
|
1.3
|
1800
|
|
ANP 355MB10
|
132
|
180
|
590
|
93.5
|
0.78
|
275
|
6
|
2
|
1.3
|
2500
|
|
ANP 355M10
|
160
|
220
|
590
|
93.5
|
0.78
|
333
|
6
|
2
|
1.3
|
2500
|
INSTALLATION DIMENSION
|
MOUNTING AND OVERALL DIMENSIONS
IM B35 H80-355
|
|
Type
|
Poles
|
L
|
H
|
C
|
P
|
N
|
E
|
T
|
D
|
G
|
F
|
DH
|
HD
|
M
|
S
|
AD
|
AC
|
A
|
AB
|
B
|
K
|
|
80A
|
2.4.6
|
310
|
80
|
50
|
200
|
130
|
50
|
3.5
|
22
|
18.5
|
6
|
M6X1X25
|
214
|
165
|
4x12
|
145
|
158
|
125
|
165
|
100
|
10
|
|
80B
|
2.4.6
|
310
|
80
|
50
|
200
|
130
|
50
|
3.5
|
22
|
18.5
|
6
|
M6X1X25
|
214
|
165
|
4x12
|
145
|
158
|
125
|
165
|
100
|
10
|
|
90L
|
2.4.6
|
360
|
90
|
56
|
250
|
180
|
50
|
4
|
24
|
20
|
8
|
M8X1.25X25
|
250
|
215
|
4x15
|
155
|
177
|
140
|
180
|
125
|
10
|
|
100S
|
2.4
|
385
|
100
|
63
|
250
|
180
|
60
|
4
|
28
|
24
|
8
|
M8X1.25X35
|
270
|
215
|
4x15
|
180
|
198
|
160
|
205
|
112
|
12
|
|
100L
|
2.4.6
|
385
|
100
|
63
|
250
|
180
|
60
|
4
|
28
|
24
|
8
|
M8X1.25X35
|
270
|
215
|
4x15
|
180
|
198
|
160
|
205
|
140
|
12
|
|
112MA
|
4.6
|
435
|
112
|
70
|
300
|
230
|
80
|
4
|
32
|
27
|
10
|
M10X1.5X35
|
300
|
265
|
4x15
|
190
|
220
|
190
|
230
|
140
|
12
|
|
112MB
|
2.4.6.8
|
435
|
112
|
70
|
300
|
230
|
80
|
4
|
32
|
27
|
10
|
M10X1.5X35
|
300
|
265
|
4x15
|
190
|
220
|
190
|
230
|
140
|
12
|
|
132S
|
4.6.8
|
470
|
132
|
89
|
350
|
250
|
80
|
5
|
38
|
33
|
10
|
M12X1.75X40
|
345
|
300
|
4x19
|
210
|
259
|
216
|
270
|
140
|
12
|
|
132M
|
2.4.6
|
510
|
132
|
89
|
350
|
250
|
80
|
5
|
38
|
33
|
10
|
M12X1.75X40
|
345
|
300
|
4x19
|
210
|
259
|
216
|
270
|
178
|
12
|
|
160S
|
2
|
615
|
160
|
108
|
350
|
250
|
110
|
5
|
42
|
37
|
12
|
M16X2X40
|
420
|
300
|
4x19
|
255
|
315
|
254
|
320
|
178
|
15
|
|
160S
|
4.6.8
|
615
|
160
|
108
|
350
|
250
|
110
|
5
|
48
|
42.5
|
14
|
M16X2X40
|
420
|
300
|
4x19
|
225
|
315
|
254
|
320
|
178
|
15
|
|
160M
|
2
|
660
|
160
|
108
|
350
|
250
|
110
|
5
|
42
|
37
|
12
|
M16X2X40
|
420
|
300
|
4x19
|
255
|
315
|
254
|
320
|
210
|
15
|
|
160M
|
4.6.8
|
660
|
160
|
108
|
350
|
250
|
110
|
5
|
48
|
42.5
|
14
|
M16X2X40
|
420
|
300
|
4x19
|
255
|
315
|
254
|
320
|
210
|
15
|
|
180S
|
2
|
700
|
180
|
121
|
400
|
300
|
110
|
5
|
48
|
42.5
|
14
|
M16X2X45
|
455
|
350
|
4x19
|
280
|
355
|
279
|
355
|
203
|
15
|
|
180S
|
4.6.8
|
700
|
180
|
121
|
400
|
300
|
110
|
5
|
55
|
49
|
16
|
M16X2X45
|
455
|
350
|
4x19
|
280
|
355
|
279
|
355
|
203
|
15
|
|
180M
|
2
|
740
|
180
|
121
|
400
|
300
|
110
|
5
|
48
|
42.5
|
14
|
M16X2X45
|
455
|
350
|
4x19
|
280
|
355
|
279
|
355
|
241
|
15
|
|
180M
|
4.6.8
|
740
|
180
|
121
|
400
|
300
|
110
|
5
|
55
|
49
|
16
|
M16X2X45
|
455
|
350
|
4x19
|
280
|
355
|
279
|
355
|
241
|
15
|
|
200M
|
2
|
770
|
200
|
133
|
450
|
350
|
110
|
5
|
55
|
49
|
16
|
M18X2.5X50
|
505
|
400
|
4x19
|
305
|
397
|
318
|
395
|
267
|
19
|
|
200M
|
4.6.8
|
800
|
200
|
133
|
450
|
350
|
140
|
5
|
60
|
53
|
18
|
M18X2.5X50
|
505
|
400
|
4x19
|
305
|
397
|
318
|
395
|
267
|
19
|
|
200L
|
2
|
770
|
200
|
133
|
450
|
350
|
110
|
5
|
55
|
49
|
16
|
M18X2.5X50
|
505
|
400
|
4x19
|
305
|
397
|
318
|
395
|
305
|
19
|
|
200L
|
4.6.8
|
800
|
200
|
133
|
450
|
350
|
140
|
5
|
60
|
53
|
18
|
M18X2.5X50
|
505
|
400
|
4x19
|
305
|
397
|
318
|
395
|
305
|
19
|
|
225M
|
2
|
820
|
225
|
149
|
550
|
450
|
110
|
5
|
55
|
49
|
16
|
M18X2.5X50
|
560
|
500
|
4x19
|
335
|
445
|
356
|
435
|
311
|
19
|
|
225M
|
4.6.8
|
850
|
225
|
149
|
550
|
450
|
140
|
5
|
65
|
58
|
18
|
M18X2.5X50
|
560
|
500
|
4x19
|
335
|
445
|
356
|
435
|
311
|
19
|
|
250S
|
2
|
845
|
250
|
168
|
550
|
450
|
140
|
5
|
65
|
58
|
18
|
M20X2.5X60
|
615
|
500
|
4x24
|
370
|
485
|
406
|
490
|
311
|
24
|
|
250S
|
4.6.8
|
845
|
250
|
168
|
550
|
450
|
140
|
5
|
75
|
67.5
|
20
|
M20X2.5X60
|
615
|
500
|
4x24
|
370
|
485
|
406
|
490
|
311
|
24
|
|
250M
|
2
|
920
|
250
|
168
|
550
|
450
|
140
|
5
|
65
|
58
|
18
|
M20X2.5X60
|
615
|
500
|
4x24
|
370
|
485
|
406
|
490
|
349
|
24
|
|
250M
|
4.6.8
|
920
|
250
|
168
|
550
|
450
|
140
|
5
|
75
|
67.5
|
20
|
M20X2.5X60
|
615
|
500
|
4x24
|
370
|
485
|
406
|
490
|
349
|
24
|
|
280S
|
2
|
995
|
280
|
190
|
660
|
550
|
140
|
6
|
70
|
62.5
|
20
|
M20X2.5X60
|
680
|
600
|
4x24
|
410
|
547
|
457
|
550
|
368
|
24
|
|
280S
|
4.6.8
|
1025
|
280
|
190
|
660
|
550
|
170
|
6
|
80
|
71
|
22
|
M20X2.5X60
|
680
|
600
|
4x24
|
410
|
547
|
457
|
550
|
368
|
24
|
|
280M
|
2
|
1045
|
280
|
190
|
660
|
550
|
140
|
6
|
70
|
62.5
|
20
|
M20X2.5X60
|
680
|
600
|
4x24
|
410
|
547
|
457
|
550
|
419
|
24
|
|
280M
|
4.6.8
|
1075
|
280
|
190
|
660
|
550
|
170
|
6
|
80
|
71
|
22
|
M20X2.5X60
|
680
|
600
|
4x24
|
410
|
547
|
457
|
550
|
419
|
24
|
|
315S
|
2
|
1185
|
315
|
216
|
660
|
550
|
140
|
6
|
75
|
67.5
|
20
|
M20X2.5X60
|
845
|
600
|
4x24
|
530
|
620
|
508
|
635
|
406
|
28
|
|
315S
|
4.6.8
|
1220
|
315
|
216
|
660
|
550
|
170
|
6
|
90
|
81
|
25
|
M20X2.5X60
|
845
|
600
|
4x24
|
530
|
620
|
508
|
635
|
406
|
28
|
|
315M
|
2
|
1290
|
315
|
216
|
660
|
550
|
140
|
6
|
75
|
67.5
|
20
|
M20X2.5X60
|
845
|
600
|
4x24
|
530
|
620
|
508
|
635
|
457
|
28
|
|
315M
|
4.6.8
|
1325
|
315
|
216
|
660
|
550
|
170
|
6
|
90
|
81
|
25
|
M20X2.5X60
|
845
|
600
|
4x24
|
530
|
620
|
508
|
635
|
457
|
28
|
|
355S
|
2
|
1520
|
355
|
254
|
800
|
680
|
170
|
6
|
85
|
76
|
22
|
M24X3X70
|
1010
|
740
|
4x24
|
655
|
698
|
610
|
730
|
500
|
28
|
|
355S
|
4.6.8
|
1560
|
355
|
254
|
800
|
680
|
210
|
6
|
100
|
92
|
28
|
M24X3X70
|
1010
|
740
|
4x24
|
655
|
698
|
610
|
730
|
500
|
28
|
|
355M
|
2
|
1520
|
355
|
254
|
800
|
680
|
170
|
6
|
85
|
76
|
22
|
M24X3X70
|
1010
|
740
|
4x24
|
655
|
698
|
610
|
730
|
560
|
28
|
|
355M
|
4.6.8
|
1560
|
355
|
254
|
800
|
680
|
210
|
6
|
100
|
92
|
28
|
M24X3X70
|
1010
|
740
|
4x24
|
655
|
698
|
610
|
730
|
560
|
28
|
BEARING SIZE
|
Frame Size
|
Poles
|
Drive End
|
Non-Drive End
|
|
International type
|
Internationat type
|
|
71
|
2-6
|
6204 ZZ-C3
|
6202 ZZ-C3
|
|
80
|
2-8
|
6205 ZZ-C3
|
6204 ZZ-C3
|
|
90
|
2-8
|
6206 ZZ-C3
|
6205 ZZ-C3
|
|
100
|
2-8
|
6306 ZZ-C3
|
6206 ZZ-C3
|
|
112
|
2-8
|
6307 ZZ-C3
|
6306 ZZ-C3
|
|
132
|
2-8
|
6308 ZZ-C3
|
6308 ZZ-C3
|
|
160
|
2
|
6309-C3
|
6309-C3
|
|
4-8
|
6311-C3
|
6309-C3
|
|
180
|
2
|
6312-C3
|
6311-C3
|
|
4-8
|
6312-C3
|
6311-C3
|
|
200
|
2
|
6313-C3
|
6312-C3
|
|
4-8
|
6313-C3
|
6312-C3
|
|
225
|
2
|
6314-C3
|
6313-C3
|
|
4-8
|
6314-C3
|
6313-C3
|
|
250
|
2
|
6316-C3
|
6314-C3
|
|
4-8
|
6316-C3
|
6314-C3
|
|
280
|
2
|
6317-C3
|
6314-C3
|
|
4-8
|
6317-C3
|
6317-C3
|
|
315
|
2
|
6317-C3
|
6317-C3
|
|
4-10
|
NU319-C3
|
6319-C3
|
|
355
|
2
|
NU322-C3
|
6319-C3
|
|
4-10
|
NU322-C3
|
6322-C3
|
MAIN DATAS OF TERMINAL BOX
|
Classified number
|
Frame size
|
Max.F.Amps
|
Entery hole size
|
|
International standard
|
|
1
|
H80
|
2.6
|
2×M20×15
|
|
2
|
H90-100
|
6.8
|
2×M25×1.5
|
|
3
|
H112-132
|
15.4
|
2×M35×1.5
|
|
4
|
H160-180
|
42.5
|
2×M40×1.5
|
|
5
|
H200-225
|
84.2
|
2×M50×1.5
|
|
6
|
H250-280
|
166.6
|
2×M63×1.5
|
|
7
|
H315
|
358
|
2×M63×1.5
|
|
8
|
H355
|
546
|
2×M63×1.5
|
